TJM10/TJM11/TJM12 Mitering machine

1. Functional featrures

※ it is applicable to the grinding of straight edge, multi-level edge and 45 ° edge of flat glass, and the rough grinding,

    fine grinding and polishing are completed at one time;

※ the overall advance and retreat of the stage edge grinding head is convenient to adjust the glass thickness, the remaining

    thickness of the processed glass stage edge, the angle of the stage edge and the width of the stage edge, and the

    adjustment function is controlled independently.

※ 45 ° fixed front chamfer grinding head;

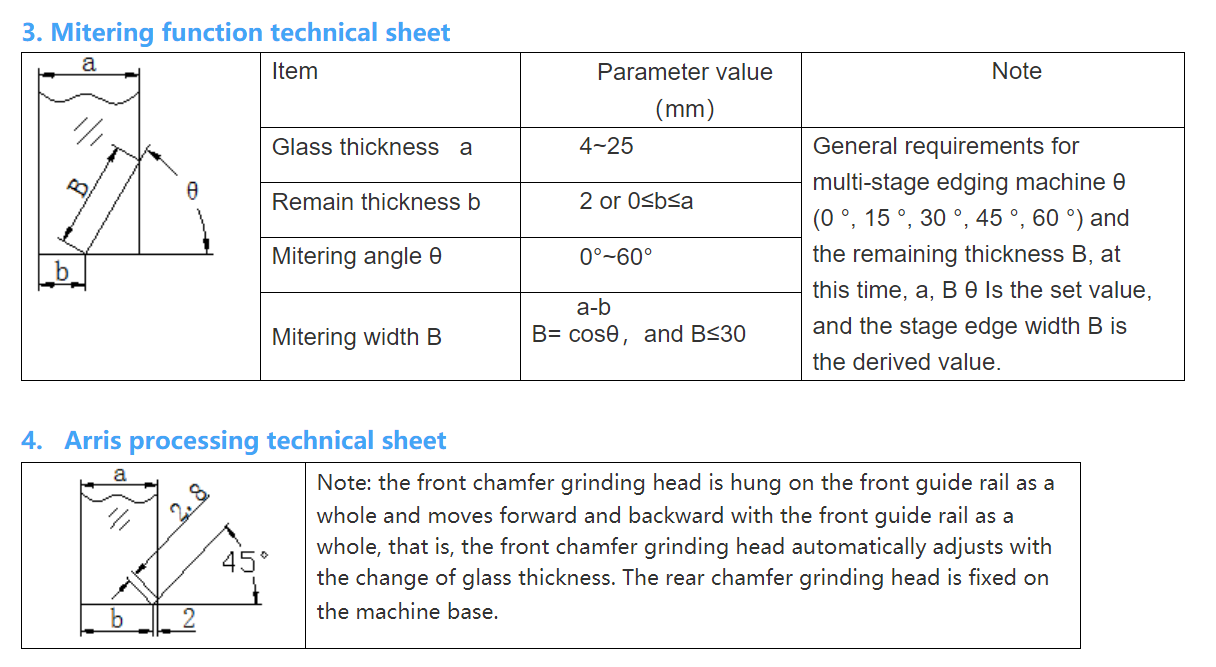

※ the adjustment range of stage edge angle is large, and the maximum angle of grinding stage edge is 60;

※ mechanical position display and scale display of level edge grinding parameters;

※ TJM9 multi-stage edge grinding head is equipped with independent cerium oxide wool wheel for polishing,

    with good polishing effect;

※ the input and output guide rails adopt the reinforced synchronous belt to transport the glass, which reliably carries and

   transports the heavy glass, and solves the problem of slipping of the heavy glass transported by the previous straight

   edge machine and the fracture of the synchronous belt;

※ the specially designed brush holder structure can quickly replace the brush, making the maintenance of the waterway

     system easy.

※ with 24V safety voltage control and door opening and power-off protection make the operation more reliable and safe;

※ the hand pump lubricates the front guide rail moving carriage

※ key structural parts such as base, column, front guide rail and rear guide rail shall adopt anti deformation casting structure

2. Working conditions

a) Power supply: AC380V ± 10% 50Hz ± 2% 3 φ (it can be customized according to the power supply of different countries);

b) Ambient temperature: ambient temperature: 1 ℃ ~40 ℃;

c) Relative air humidity: ＜ 90%.
