TJM12Z Shaft chain mitering machine

1. Brief description

TJM12Z shaft   chain glass mitering machine is used to grind the flat bottom edge, grade edge and edge

angle of flat glass of different sizes and thicknesses. The rough grinding, fine grinding and polishing of grade edge and

bottom edge are completed at one time. The change of stage edge angle and glass thickness is easy to adjust, and the

front chamfer grinding head moves forward and backward with the front guide rail as a whole unit. The straight edge, grade

edge and rear chamfer can be processed at one time. The flat glass with the same thickness can be processed continuously.

The polished bottom edge and chamfering are close to the smoothness of the glass matrix.

2. Patented product: the third generation mitering machine

※ the shaft chain mitering machine with front and rear splints of axle chain structure integrates the advantages of conventional

    bearing machine and chain machine, and solves the disadvantages of bearing machine and chain machine.

※ the bearing is used as the guide, the chain is used as the power transmission component, and the sliding contact between    the glass splint and the inlay plane is used as the positioning reference.

※ the organic combination of relatively independent guidance, power and positioning improves the reliability of the machine

    transmission and the positioning flatness of the glass splint, greatly reducing the maintenance cost and use cost

※ it is suitable for grinding of glass clamping small pieces of 40mm and above.

※ the shaft chain machine with this structure solves the problem that the clamping plate positioned by the bearing of the

    common bearing machine is inconsistent with the rolling contact positioning datum of the inlay line.

※ the shaft chain machine with this structure solves the defects of common bearing machines that bearings are used as both

    guide and power transmission parts, resulting in easy bearing damage and high maintenance cost.

※ the front and rear splints of the shaft chain structure are machined by flat grinding, and are plane sliding friction in the

    process of use, so as to always ensure the consistency of splint thickness.

※ the input and output guide rails adopt the reinforced synchronous belt to transport the glass, which reliably carries and

    transports the heavy glass, and solves the problem of slipping of the heavy glass transported by the previou straight line

   edge machine and the fracture of the synchronous belt;

※ the specially designed brush seat structure can quickly replace the brush, making the maintenance of the waterway

    system easy;

※ 24V safety voltage control and door opening and power-off protection make the operation more reliable and safe;

※ the hand pump lubricates the front guide rail moving carriage (adjust the glass thickness);

※ key structural parts such as fuselage, column and guide rail shall be of anti deformation casting structure;

※ three column structures are used to support the girder, and the machine has good rigidity;

※ it is the preferred equipment for processing small pieces of glass and high-grade glass with high cost performance.

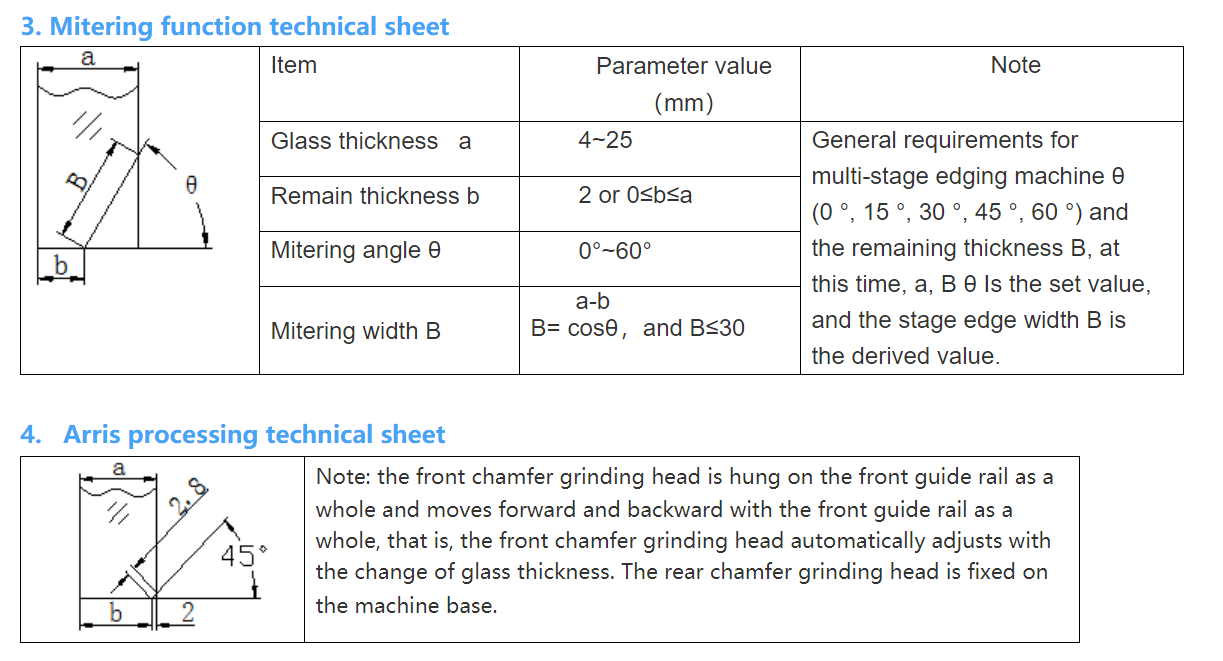

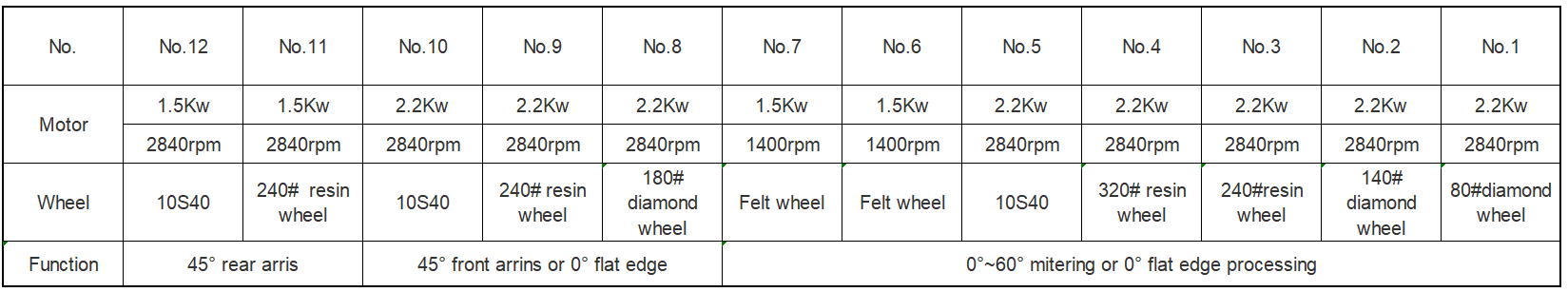

5 Wheels distribution
